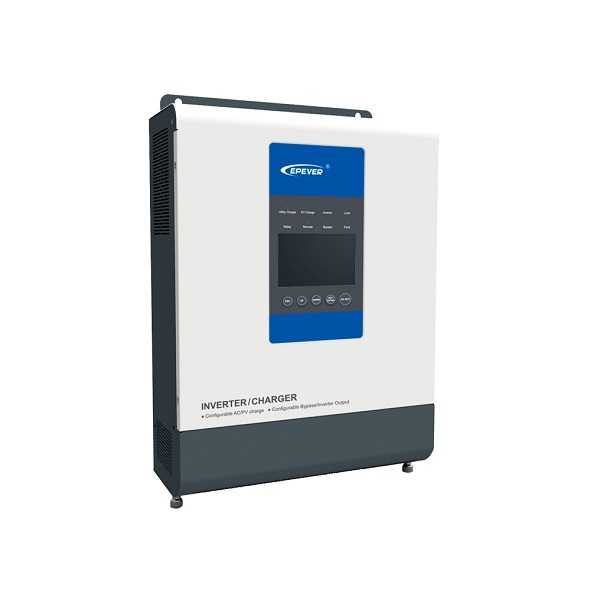

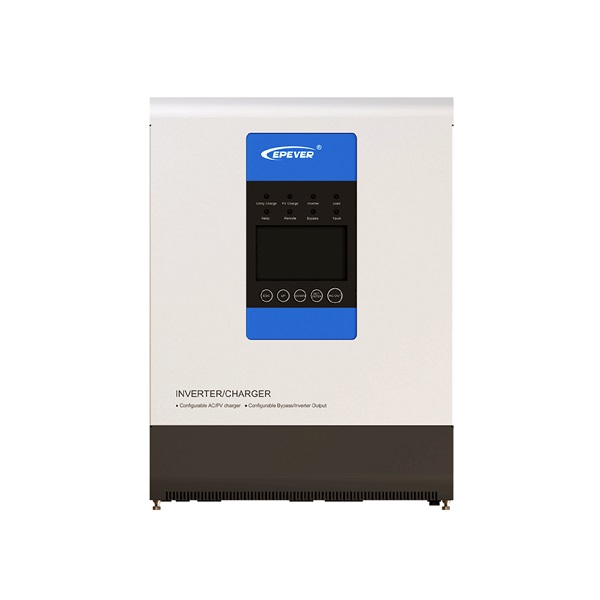

EPEVER UP1000-M3212 12v 800w inverter charger

EPEVER UP1000-M3212 12v 800w inverter charger

The UPower series is a new type of inverter/charger combined with solar & utility charging and AC output, which adopts a multi-core processor design and advanced MPPT control algorithm, and has the features of high response speed, high reliability, and high industrialization standard. It offers four charging modes to including Solar priority, Utility priority, Solar, and Utility & Solar; two output modes for Battery and Utility, meeting the various application demands. The up-to-date optimized MPPT tracking technology is adopted for the PV charging modules.

Product Features:

• Adoption of the advanced SPWM technology, with pure sine wave output
• Fully digitalized voltage and current double closed-loop control
• Advanced MPPT technology, with efficiency no less than 5%
• Four charging modes: Solar priority, Utility priority Utility Solar and Solar only
• Two OUTPUT modes: Battery and Utility
• LCD design that enables the dynamic display of system running data and operating state
• Provided with a common interface and advanced interface
• Multiple LED indicators that instantly indicate the operating state of the system
• 2P circuit breaker provided at the utility input end
• Independent control of AC output by AC OUT button
• Battery temperature compensation function
• Nominal battery voltage = 12VDC
• Battery input range = 10.8 ~ 16VDC

Inverter Output:

• Continuous output power = 800W
• Output power (15min) = 1000W
• Overload Power (5s) = 1600W
• Max. surge power = 2000W
• Output voltage range = 220VA +/-5%, 230VAC (-10% ~ +5%)
• Output frequency = 50/60+/-0.1 Hz
• Output mode = Single phase
• Output wave = Pure Sine Wave
• Max efficiency = 91%
• Transfer time = 0 ~ 20ms

Utility Input:

• Utility input voltage range = 160VAC ~ 280VAC (working voltage range) / 170VAC ~ 270VAC (Untility starting voltage range)
• Max. Utility charge current = 20A

Solar Charging:

• Max. PV open circuit voltage = 60V
• Max. PV input power = 390W
• Max. PV charging current = 30A
• Equalization voltage = 14.6V
• Boost Voltage = 14.4V
• Float Voltage = 13.8V
• Tracking efficiency = <99.5%
• Max. charging conversion efficiency = 98%

General:

• Zero load consumption = <1.2A
• Enclosure = IP30
• Relative humidity = <95% (N.C.)
• Working environment temperature = -20C ~ 50C (full input and output with no derating)

Mechanical Parameters:

• Dimensions = 386mm x 300mm x 126mm
• Mounting dimension = 230mm
• Mounting hole size = 8mm
• Net weight = 7.3kg
