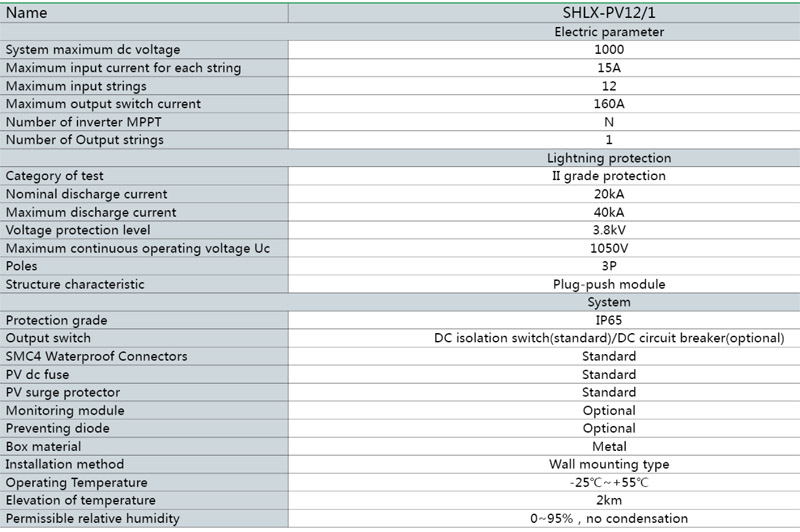

SHLX-PV12/1 DC combiner box
ADVANTAGES
ADVANTAGES
• High Reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch
• Strong Adaptability
IP65 design, waterproof, anti-dust, and anti-ultraviolet.
Strict tests for high and low temperatures are used widely.
The simple installation, the simplified system wiring, the convenient wiring
The box body is made of cold-rolled steel and other metal materials
• Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin-film solar modules. The current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified
Description
DESCRIPTION
SHLX-PV12/1 PV combiner box bus synthetic DC input of 12 PV components to 1 output. Each channel is with a fuse. The output side is equipped with lightning protection and a circuit breaker. It greatly simplifies the input wiring of the DC power distribution cabinet and inverter. Realize lightning protection, short circuit protection, and grounding protection. PV combiner box divided into two types: intelligent box and non-intelligent box. The intelligent PV combiner box is equipped with a monitoring unit, then detect the input current of each string, detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output voltage, and so on.
Design and configuration strictly accordance with the “Technical specification for photovoltaic junction equipment”CGC/GF 037:2014.Provide users with safe, brief, beautiful, and applicable photovoltaic system products
The product adopts an outdoor wall-mounted type, which adapts to the harsh environment. In addition to the core components, the other can be customized by user requirements
