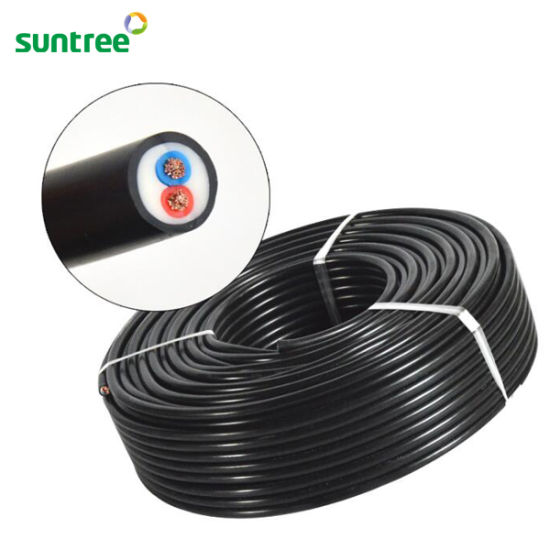

Twins core PV Cable
Quick Details
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Suntree/
- Model Number: PV solar cable
- Insulation Material: XLPE
- Type: High Voltage
- Application: solar panel system
- Conductor Material: Copper
- Jacket: halogen free crosslinked polyolefin
- Product name: Suntree DC 2.5mm2 Dual Core PV Cable PV Cable approved UL ,TUV
- Color: Red/Black
- Certificate: TUV,UL
- Rated voltage: AC 600/1000V DC 1000/1800V
- Core: 1 Core/2 Core
- Cross-section: 1.5/2.5/4/6/10 mm2
- Rated temp: -40℃-+90℃
- Rated current: 20-95A
- Weathering resistance: 4.97Ω
- Finished cable o.d: 5.35+-0.1mm
Description
Dual-Core PV Cable Characteristics:
a) Dual-wall insulation, electron beam cross-linked
b) Excellent resistance to UV,water,ozone,fluids,salt,general weathering
c) Excellent resistance to abrasion
d) Halogen-free,flame retardant, low toxicity
e) Excellent flexibility and stripping performance
f) High current carrying capacity
g) Sheath color: black or red
h) 5-year factory warranty from date of delivery
i) Designed life:25 years
j)Wire: Class 5, Tin bed
k) Insulation material:XLPE
l) Smallest permissible bending radius: 5XD
m)Temperature range: -40℃~90℃
n)Flame test according to Din EN 50265-2-1 UL1571(VW-1)
Advantages of Dual Core PV Cable :
1. Executive Standard:
PV Solar cable ( Photovoltaic Solar cable) refers to original draft made out by PV system cable work team of German Standard Committee( Technical Specification 2PFG1169/08.2007 in Rhein TUV Company German).
2. No-Halogen PV Solar Cable Type:
PV1-F: Tinned Flexible Copper Wire No-Halogen PO Insulation & Sheath Photovoltaic System Cable.
Specification
| Type | Cross-section | Strand design | Conductor diameter | Conductor resistance | Outer diameter
A×B |
Rated voltage | Rated current |
| mm2 | NO.×Φ(mm) | mm | Ω/km | mm | V AC/DC | A | |
| PV-2×1.5mm2 | 1.5 | 30×Φ0.25 | 1.6 | 13.9 | 5.80×9.30 | 1000/1800 | 20 |
| PV-2×2.5mm2 | 2.5 | 50×Φ0.25 | 2 | 8.06 | 6.20×9.90 | 1000/1800 | 30 |
| PV-2×4.0mm2 | 4 | 56×Φ0.3 | 2.6 | 4.97 | 6.9×11.30 | 1000/1800 | 50 |
| Wire | Class 5,tinned | ||||||
| Insulation material | XLPE | ||||||
| Double insulated | |||||||
| Halogen-free | |||||||
| High resistance against oils, greases,oxygen and ozone | |||||||
| Microbe-resistant | |||||||
| UV resistant | |||||||
| High wear and abrasion resistance | |||||||
| Flam test according to | DIN EN 50265-2-1 UL1571(VW-1) | ||||||
| Smallest permissible bending radius | 5×D | ||||||
| Temperature range | -40℃～+90℃ | ||||||
| Colours | Black/red | ||||||
